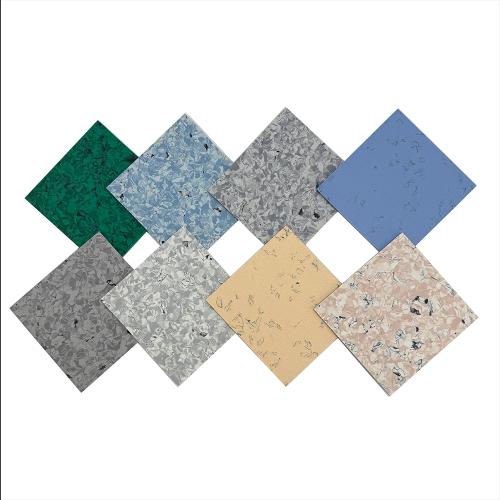

Descriptions of ESD Vinyl Floor Tiles:

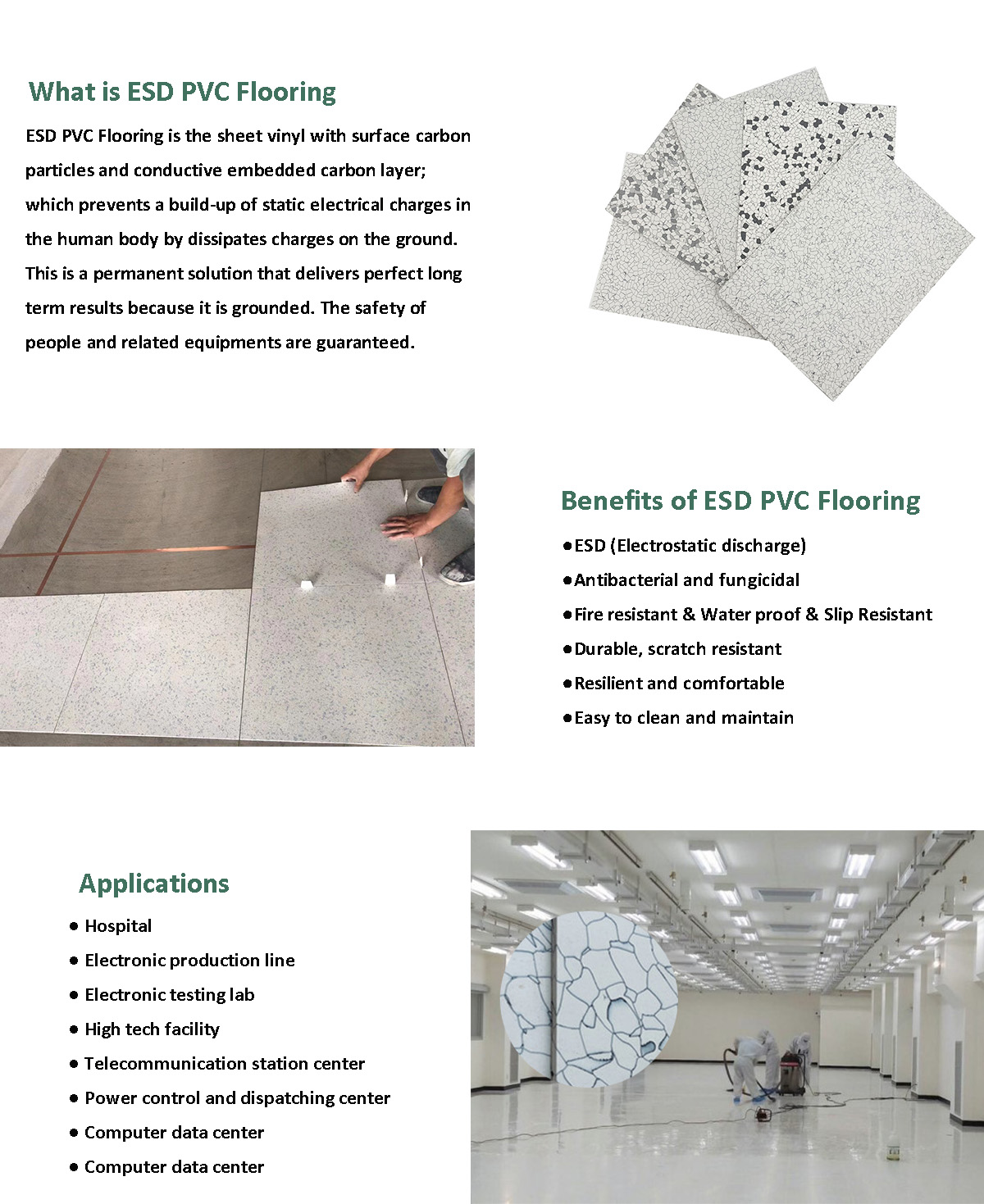

Conductive PVC tiles are a type of flooring material designed to provide electrostatic discharge (ESD) protection in environments where sensitive electronic equipment is used.
Data Sheet:
|
Item
|
Standard
|
Index
|
|
Size
|
EN426
|
600*600mm
|
|
900*900mm
|
||
|

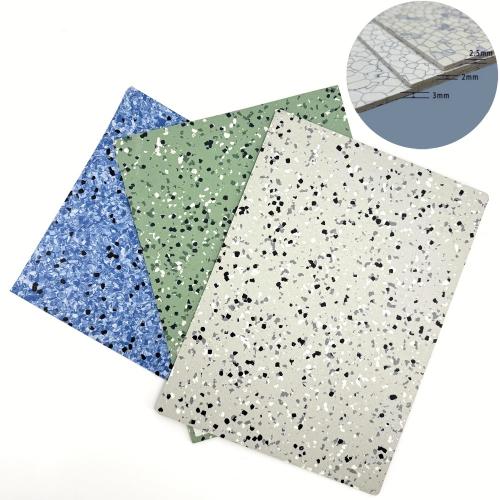

Thickness
|
EN428
|
2.0, 2.5, 3.0mm
|
|
Weight
|
EN430
|
2.0mm, 3.8kgs/m3
|
|
2.5mm, 4.8/kgs/m3
|
||
|
3.0mm, 5.8/kgs/m3
|
||
|

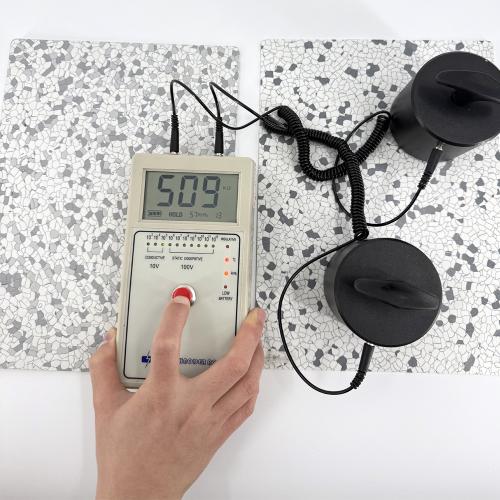

Surface Rresistance
|
DIN51953
|
104-106 Ω Conductive
|
|
ASTMF-1550 or NFPA99
|
106-109 Ω Dissipative
|
|
|
Decay Time
|
SJ/T10694-2006(VI<100V)
|
Equal 0.4S
|
|
Charge Voltage
|
SJ/T10694-2006(VI<100V)
|
Equal 70
|
|
Fire Resistance
|
DIN 4102
|
B1
|
|
Combustion Properties
|
SJ/T11236-2001(<10s,FV-0)
|
Equal 0.35s Ifv-0
|
|
Amount of anti-wear
|
SJ/T11236-2001(less than 0.02g/cm3,
110r)
|
Equal 0.014
|
|
Anti-wear Properties
|
EN660pt2
|
Ten-T < 2.0 mm3
|
|
Wheel Pressure
|
EN425
|
No influence
|
|
Residual Concavity
|
EN433, DIN51955
|
0.03mm(2.0mm)
|
|
0.035mm(2.5mm)
|
||
|
0.04mm(3mm)
|
||
|
Dimensional stability
|
EN434
|
Less than 0.1%
|
|
Color fastness
|
IDO105BO2
|
At least 6
|
|
Resistance to chenmicals
|
DIN423,DIN51958
|
offers
excellent resistance ask for special sheet
|
