ESD Rubber Table Mat Antistatic Mat Rubber Table ESD Mat
item No : HZ-30617
ESD table mats are designed to drain static charges from items placed on its surface. They also protect the surface of the ESD sensitive devices from wear-and-tear.Made from durable materials, the ESD safe mats are designed to be long-lasting whilst maintaining their antistatic properties.
Products Description
Basic Features of ESD Table Mat
It is mainly made of anti-static (conductive) materials and static-dissipative materials such as synthetic rubber.

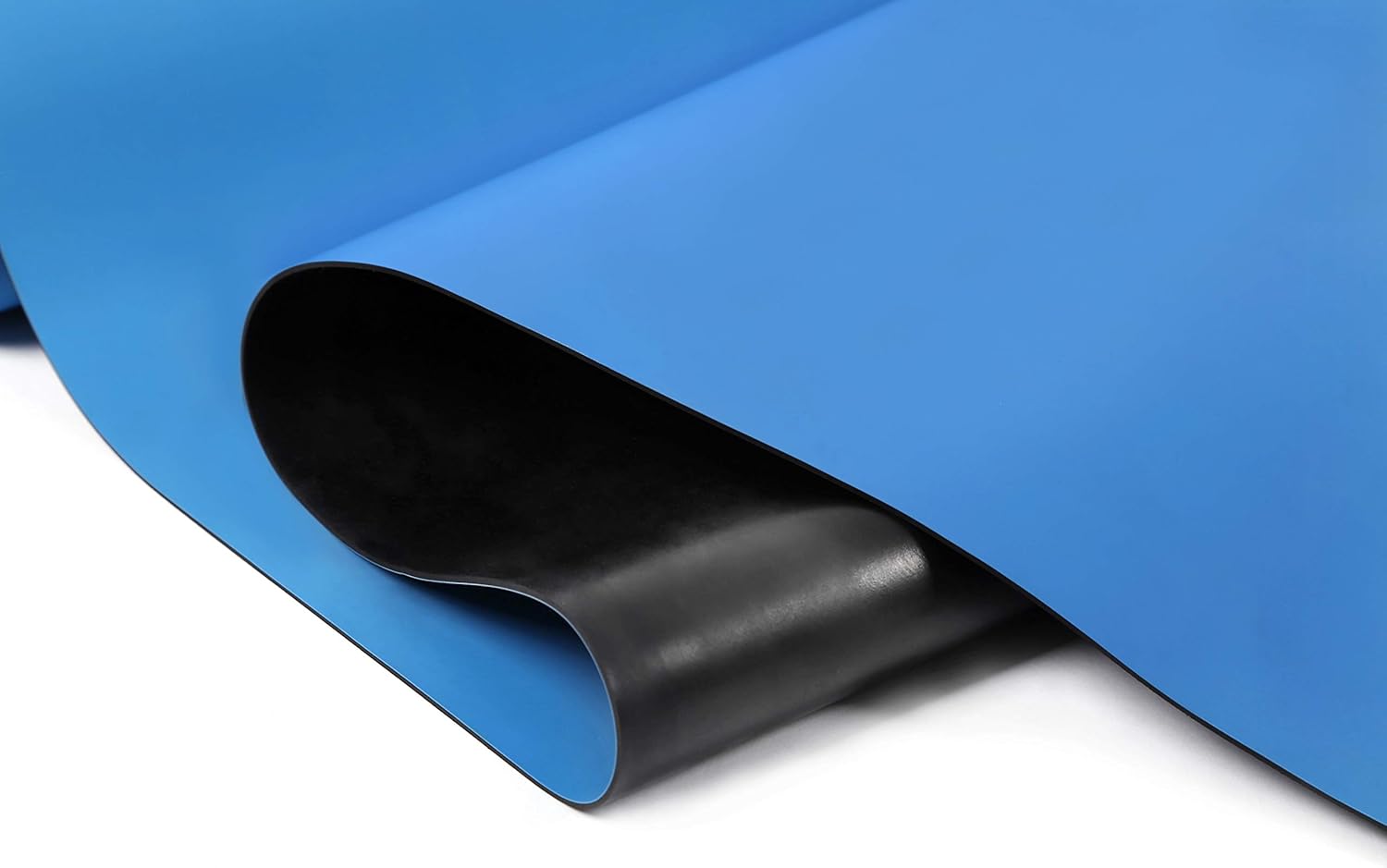

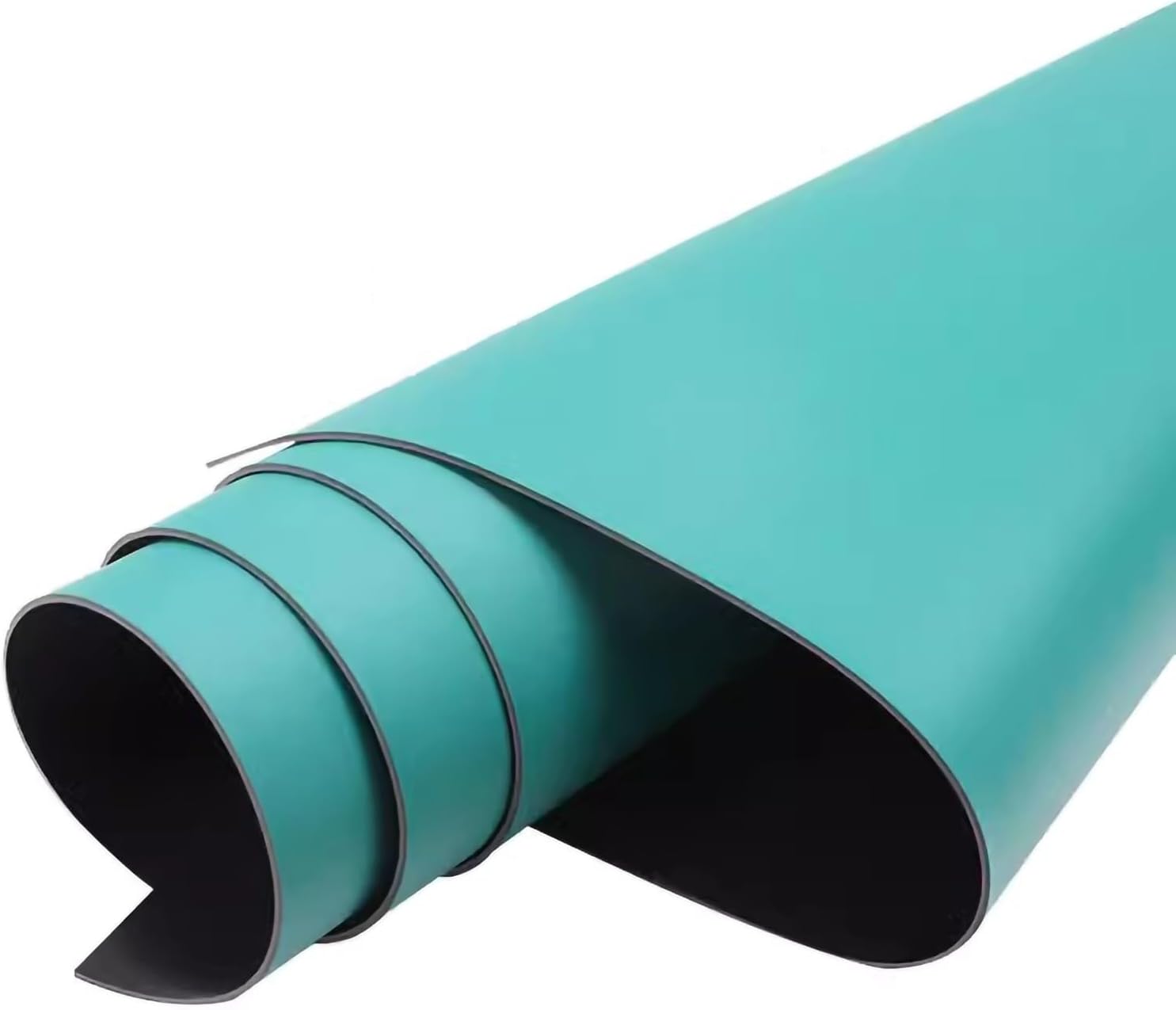

The surface layer is a static dissipative layer about 0.5 mm thick, and the bottom layer is a conductive layer about 1.5 mm thick.

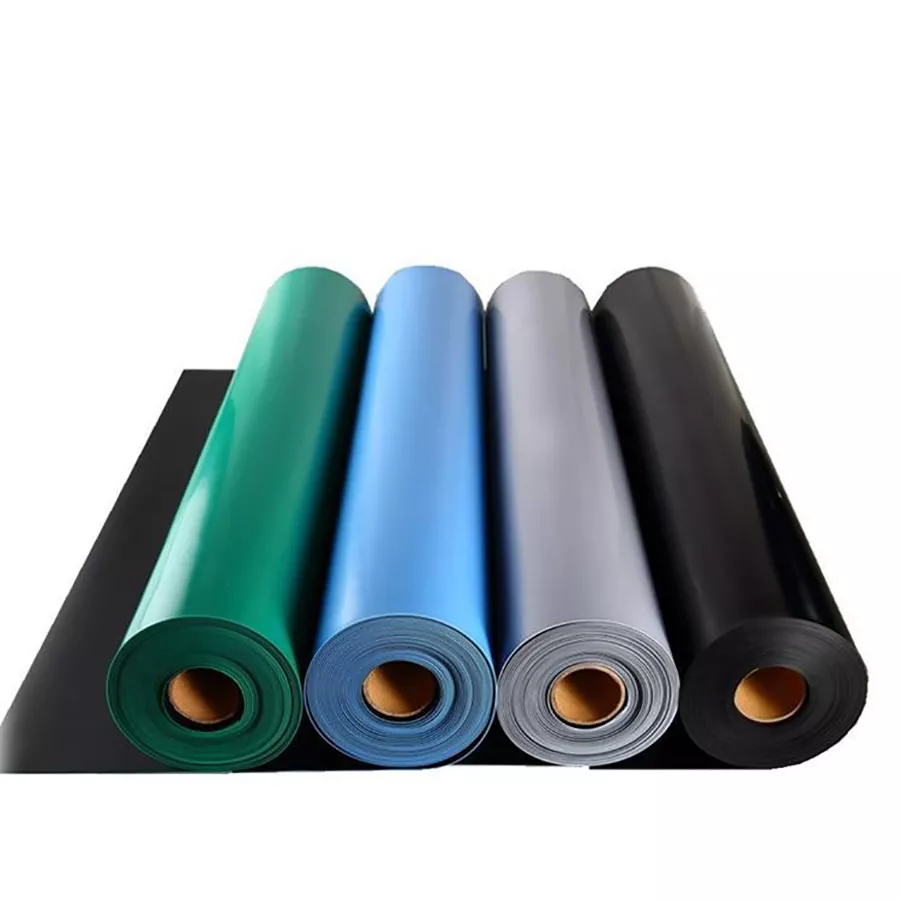

Commonly used as 2mm double-layer composite structure, available colors are green, gray, blue, black, white and so on.
According to the structure, there are two types: whole body and compound; according to the surface brightness,
there are two types: bright type and matte type.
Product Name
ESD Table Mat/ESD Table Mat
Model
HZ-30617
Color
Green/Grey/Blue, or Customized
Thickness
1.8mm,2mm,3mm
Nomal Size
1m*10m;1.2m*10m
Material
Rubber
Surface
Matt/Glossy
Surface resistance
<=10e6ohm
Volume Resistance
10e7-10e10 ohm.cm
Sample
Available (A4 size)
Feature
Static dissipation layer
Surface resistance
10e7 -10e9 ohm
Friction electrostatic charge
<100V
Conductive layer
Surface resistance
≤10 6 ohm
Friction electrostatic charge
<50V
Volume Resistance
10 7 -10 10 ohm·cm
